Kia Rio: Roof Trim - Interior - Body (Interior and Exterior) - Kia Rio UB 2012-2021 Service ManualKia Rio: Roof Trim

Components

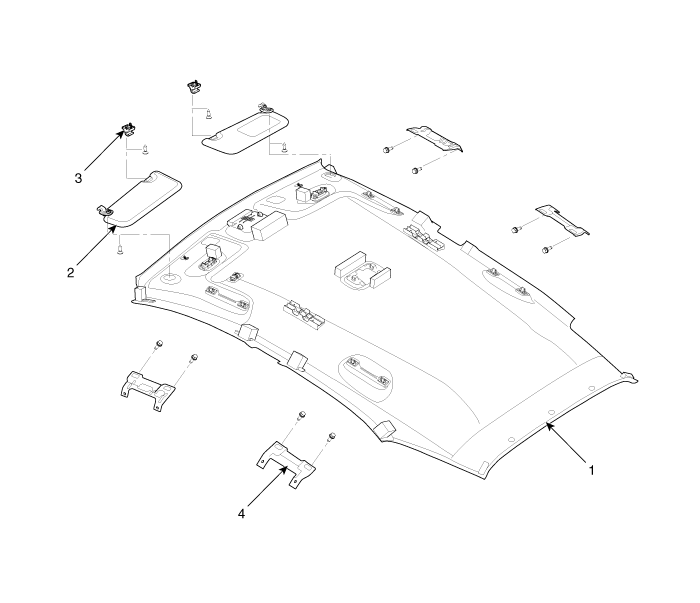

[General Type]


1 . Roof trim
2 . Sunvisor
3 . Retainer
4 . Assist handle bracket assembly

[Sunroof Type]


1 . Roof trim
2 . Sunvisor
3 . Retainer
4. Assist handle bracket assembly
