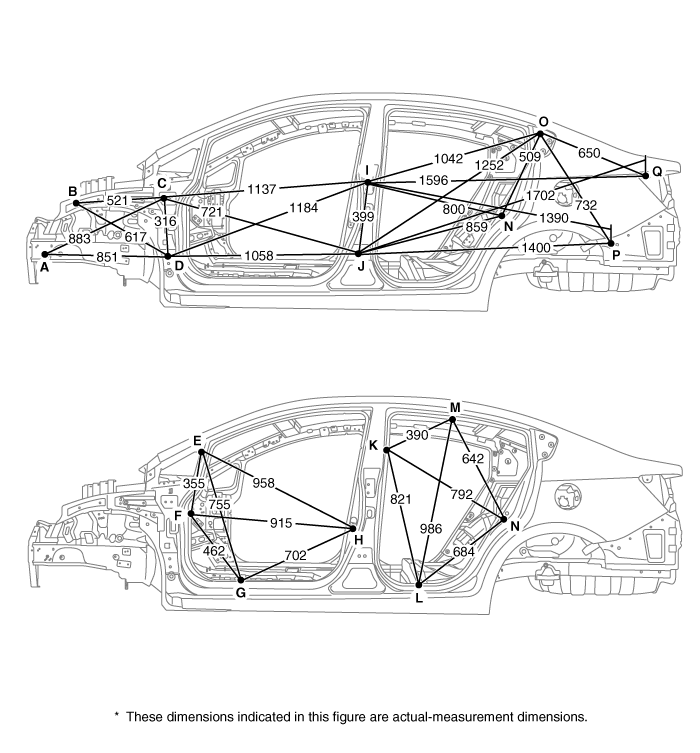

Kia Rio: 4Door Side Body
|
|
|
|
| Front side member tooling hole (Ø12) |
Fender apron upper member tooling hole (Ø7) |
Front door upper hinge mounting hole (Ø13) |
|
|
|
|
| Front door lower hinge mounting hole (Ø13) |
Delta glass mounting hole (5.5X10) |
Side outer panel notch |
|
|
|
|
| Side outer panel notch |
Front door switch mounting hole (Ø9) |
Rear door upper hinge mounting hole (Ø13) |
|
|
|
|
| Rear door lower hinge mounting hole (Ø13) |
Side outer panel notch |
Side outer panel notch |
|
|
|
|
| Side outer panel notch |
Rear door switch mounting hole (Ø9) |
Quarter pillar moulding mounting hole (Ø7) |
|
|
|
|
| Rear bumper mounting hole (10X8.5) |
Rear combination lamp mounting hole (Ø6) |
4Door Front Body C
Engine mounting hole (Ø11)
Transaxle mounting hole (Ø12)
Engine mounting hole (Ø12)
...
4Door Interior
Front pillar trim mounting hole (Ø8.5)
Curtain airbag mounting hole (Ø6.6)
Cowl crossbar mounti ...
