Kia Rio: Ignition Switch Assembly Inspection| 1. |
Disconnect the ignition switch connector (B) and key switch connector
(A) from under the steering column.
|
| 2. |

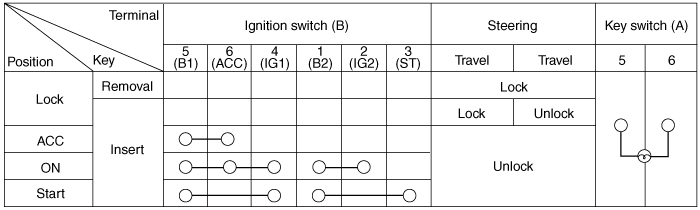

Check for continuity between the terminals.
|
| 3. |
If continuity is not specified, replace the switch.
|
Start/Stop Button Installation
