Do not use the interior lights for extended periods when the engine is not running.
It may cause battery discharge.
WARNING - Interior light
Do not use the interior lights when driving in the dark. The glare from the interior lights may obstruct your view and cause an accident.
Map lamp (if equipped)
1.Push the lens to turn the light on or off.
2.DOOR : The light comes on or goes off when a door is opened or closed.
3.OFF (Door switch is not pressed) :
The light stays off at all times even when a door is opened.
When the light is turned on with the lens pressed, the light is not turned off even with the switch in the OFF position.
Room lamp
1.ON : The light stays on at all times.
2.DOOR : The light comes on or off when a door is opened or closed.
3.OFF : The light stays off at all times even when a door is opened.
Do not leave the switch in the ON position for an extended period of time when the vehicle is not running.

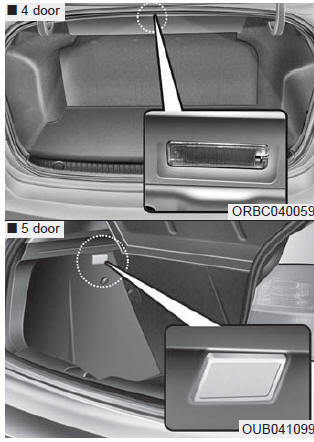

Luggage room lamp
The luggage room lamp comes on when the trunk (tailgate) is opened.
To prevent unnecessary charging system drain, close the trunk (tailgate) securely after using the luggage room.

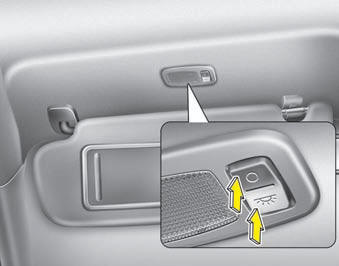

Vanity mirror lamp (if equipped)
Push the switch to turn the light on or off.
• : The lamp will turn on if this
button is pressed.
• : The lamp will turn off
if this button is pressed.
Always have the switch in the off position when the vanity mirror lamp is not in use. If the sunvisor is closed without the lamp off, it may discharge the battery or damage the sunvisor.

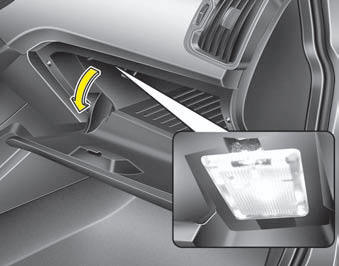

Glove box lamp
The glove box lamp comes on when the glove box is opened.
To prevent unnecessary charging system drain, close the glove box securely after using the glove box.
