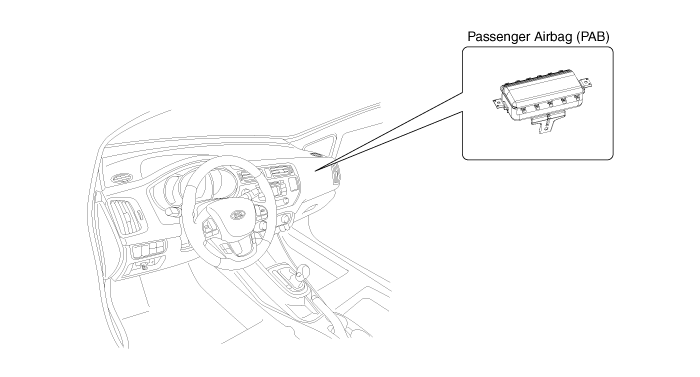

Kia Rio: Passenger Airbag (PAB) Module Components

Passenger Airbag (PAB) Module Description

The passenger airbag (PAB) is installed inside the crash pad and protects the front passenger in the event of a frontal crash. The SRSCM determines if and when to deploy the PAB. ...

Passenger Airbag (PAB) Module Removal

1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work. 2. Remove the glove box housing. ...
