Kia Rio: Rear Bumper Components - Bumper - Body (Interior and Exterior) - Kia Rio UB 2012-2022 Service ManualKia Rio: Rear Bumper Components

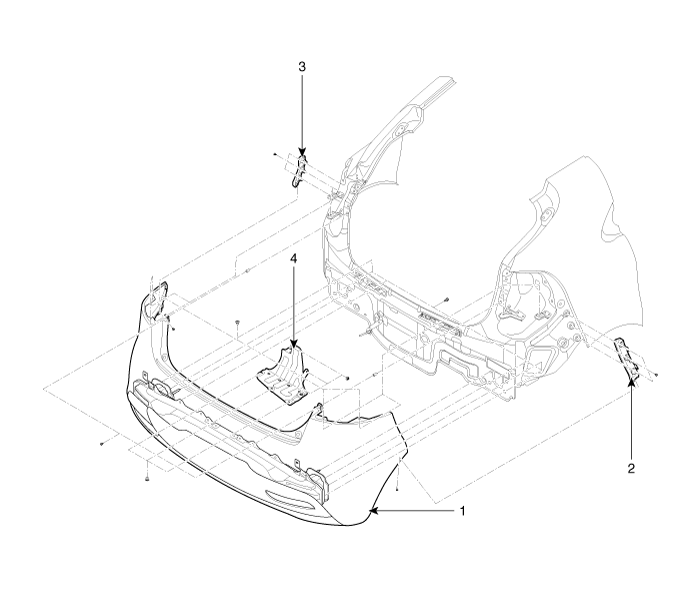

[5 Door]


1. Rear bumper cover
2. Rear bumper side bracket [RH]
3. Rear bumper side bracket [LH]
4. Rear bumper side under cover

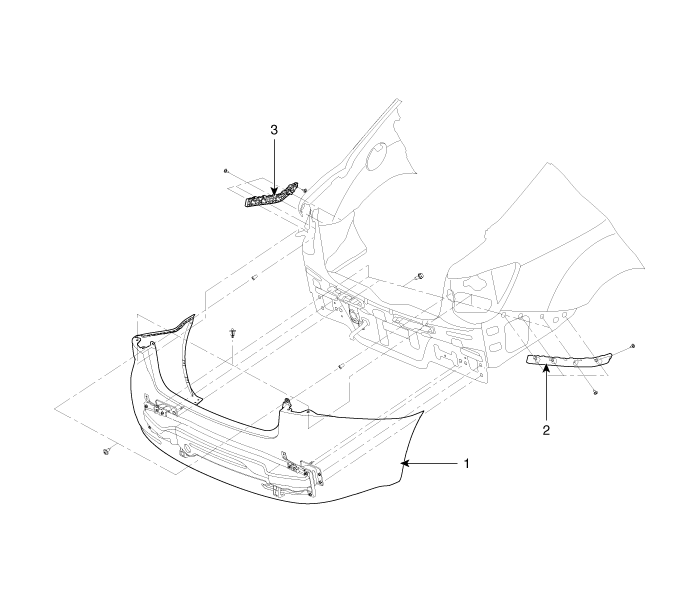

[4 Door]


1. Rear bumper cover
2. Rear bumper side bracket [RH]
3. Rear bumper side bracket [LH]
