Kia Rio: Schematic Diagram

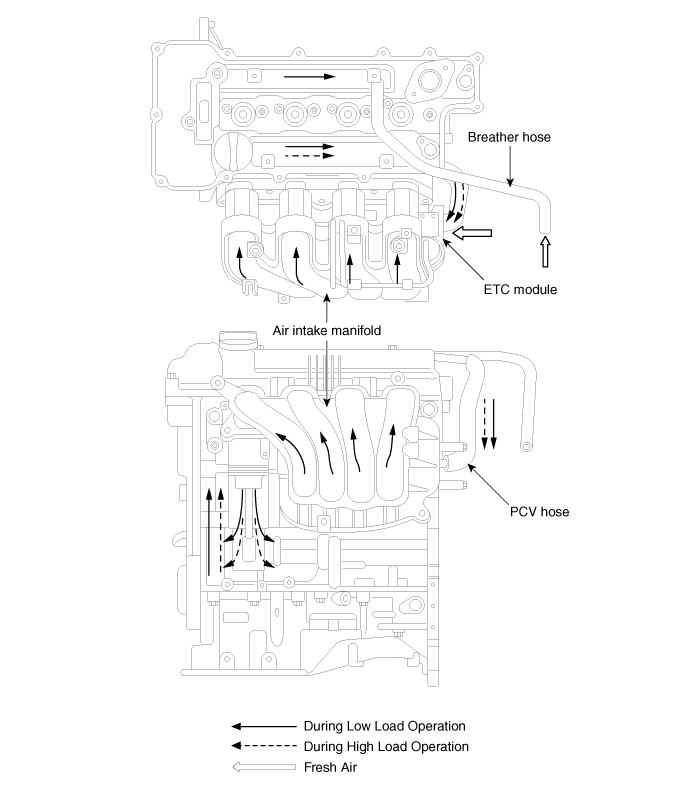

Crankcase Emission Control System

...

Inspection

1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve. 2. Reconnect the PCV valve to the vapor hose. ...
