Kia Rio: Sunroof Replacement - Exterior - Body (Interior and Exterior) - Kia Rio UB 2012-2026 Service ManualKia Rio: Sunroof Replacement

Glass Replacement


•
Put on glove to protect your hands.
1.
Remove the glass (A) by lifting it up.


•
Do not damage the roof panel.


2.
Installation is the reverse of removal.
Motor Replacement


•
Confirm the position of guide whether it is closed or not when you remove the motor.
1.
Remove the roof trim.
(Refer to the BD group - "Roof Trim")
2.
After loosening the mounting screws, then remove the motor assembly (A).
3.
Installation is the reverse of removal.


•
Make sure to initialize the motor.
Deflector Replacement
1.
Open the glass fully.
2.
After loosening the mounting screws, then remove the deflector (A).
3.
Installation is the reverse of removal.
Sunroof Assembly Replacement
1.
Remove the follows parts :
A.
Front seat
(Refer to the BD group - "Front seat")
B.
Rear seat
(Refer to the BD group - "Rear seat")
C.
Interior trim
(Refer to the BD group - "Interior Trim")
D.
Roof trim
(Refer to the BD group - "Roof Trim")
E.
Sunroof glass.
2.
After loosening the mounting bolts, then remove the assist handle bracket (A).
3.
After loosening the mounting bolts, then remove the sunroof center bracket (A).
4.

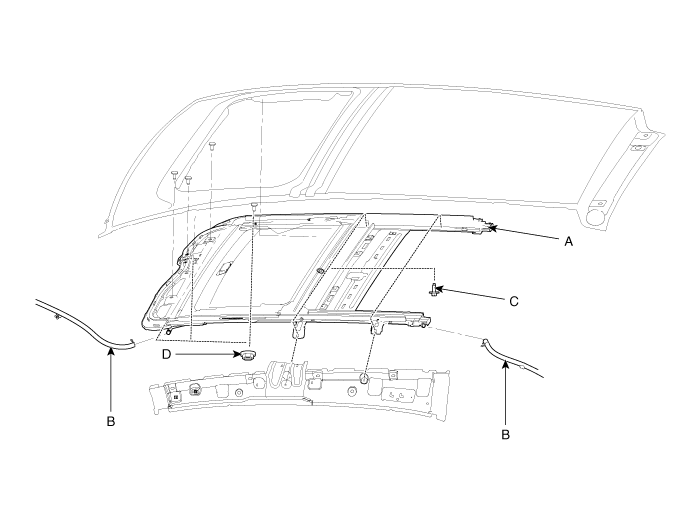

Disconnect the drain tubes (B).
5.
After loosening the mounding bolts and nuts, remove the sunroof assembly (A).
Tightening torque:
(C) : 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)
(D) : 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)


•
Take care not to scratch the interior trims and other parts.
6.
Installation is the reverse of removal.


•
Make sure to initialize the motor.


Sunshade Replacement
1.
Remove the sunroof assembly.
2.
Remove the sunshade stopper (B).
3.
Remove the sunshade assembly (A).
4.
Installation is the reverse of removal.
Guide Assembly Replacement
1.
Remove the sunroof assembly.
2.
Remove a drip link assembly (A) after lowering a guide thoroughly by pushing a slide to rear.
3.
Remove the guide (A) and drip link (B).
4.
Remove the drip link stopper (B).
5.
Remove the drip link assembly (A).
6.
Installation is the reverse of removal.


•
Make sure to align the slide with the center of “(A)” and “(B)”
•
Make sure to initialize the motor.


Sunroof Components
1 . Glass panel assembly 2 . Glass panel 3 . Reinforcement glass 4 . Encapsulated glass panel 5 . Wind deflector net assembly 6 . Wind deflector beam 7 . Plate cover [RH] ...

Sunroof Adjustment
How To Initialize 1. Check that the glass has been installed. A. Finished height adjustment. 2. ...
