Kia Rio: TPMS Sensor Diagnosis procedure by using diagnostic device - Tire Pressure Monitoring System - Suspension System - Kia Rio UB 2012-2026 Service ManualKia Rio: TPMS Sensor Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:
1.
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

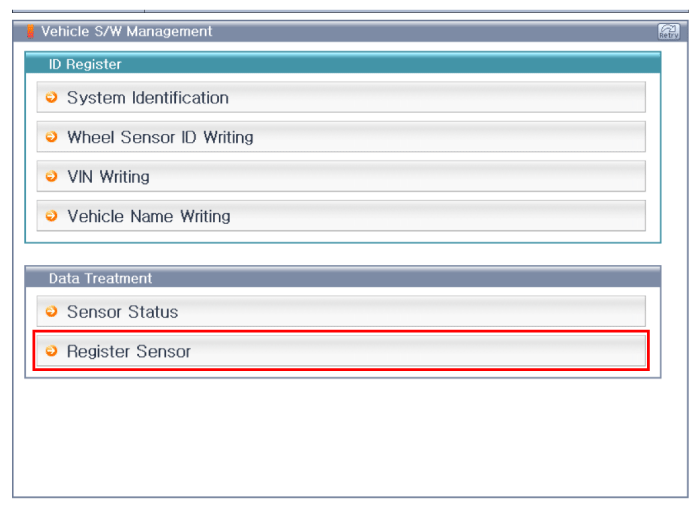

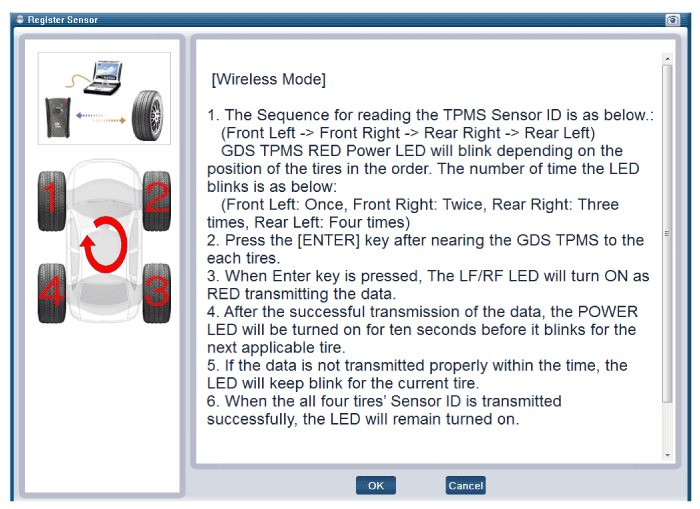

[Register Sensor initialization]


[Register Sensor function description]


[Preparation phase sensor measurements]

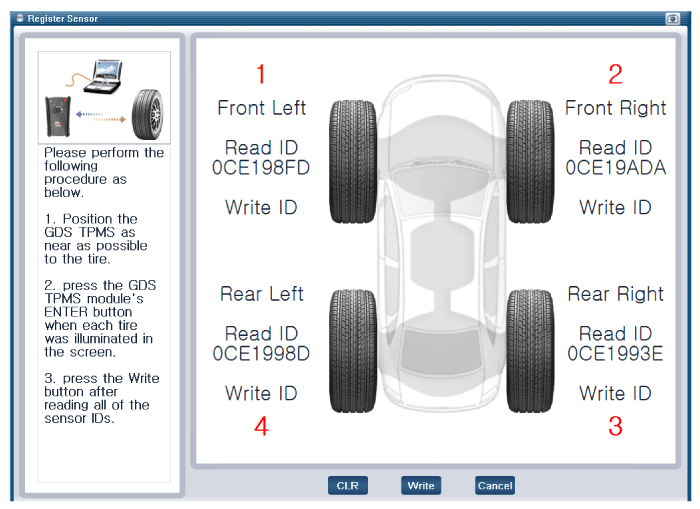

[Sensor register method 1]

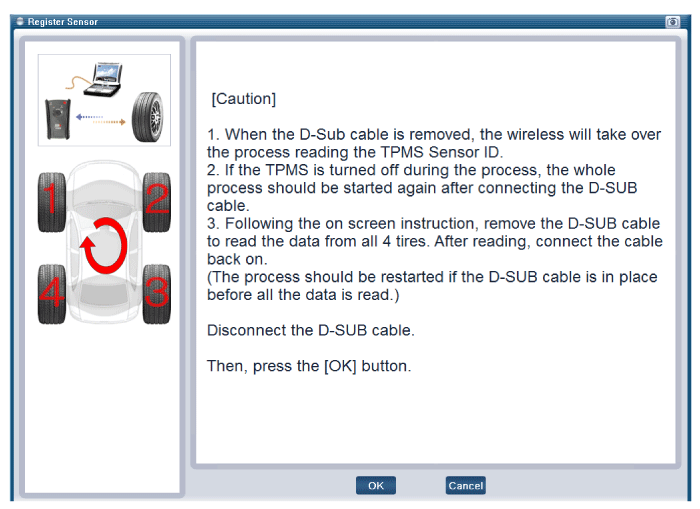

[Sensor register method 2]


[Sensor register method 3]


[Sensor register method 4]


[Sensor register method 5]




•

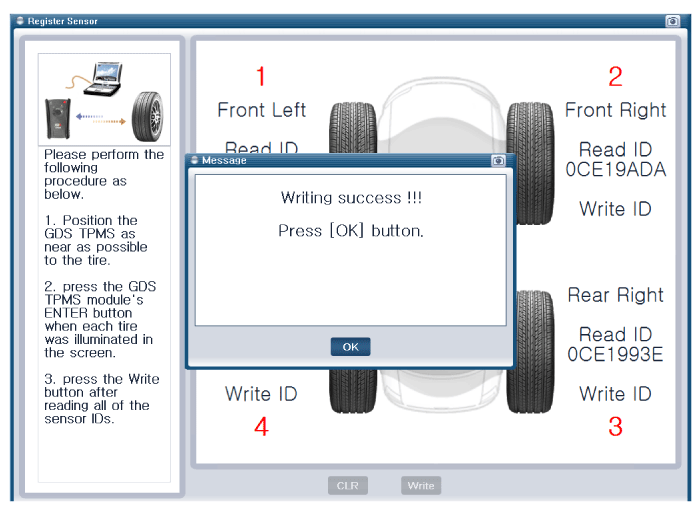

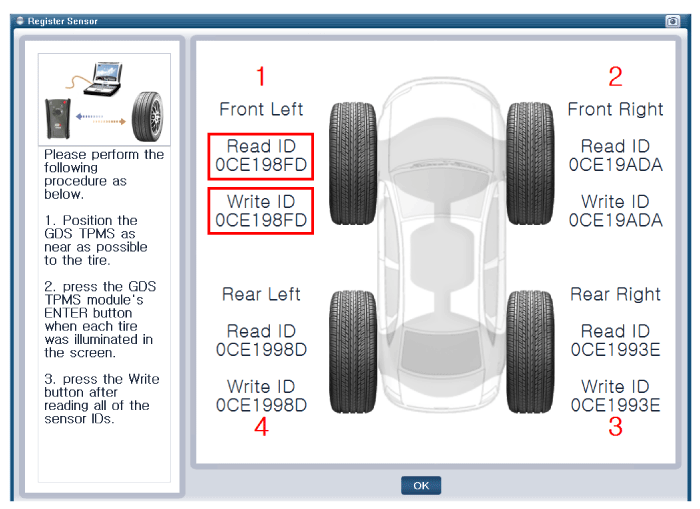

Write ID Read ID and be sure to check are the same.
•
After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.

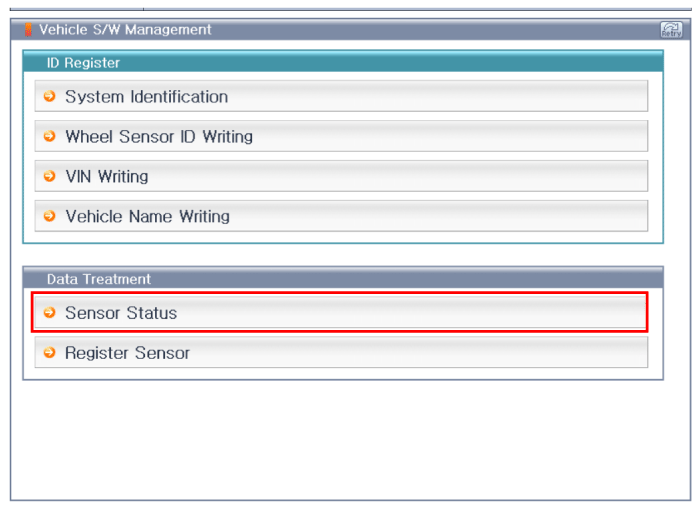

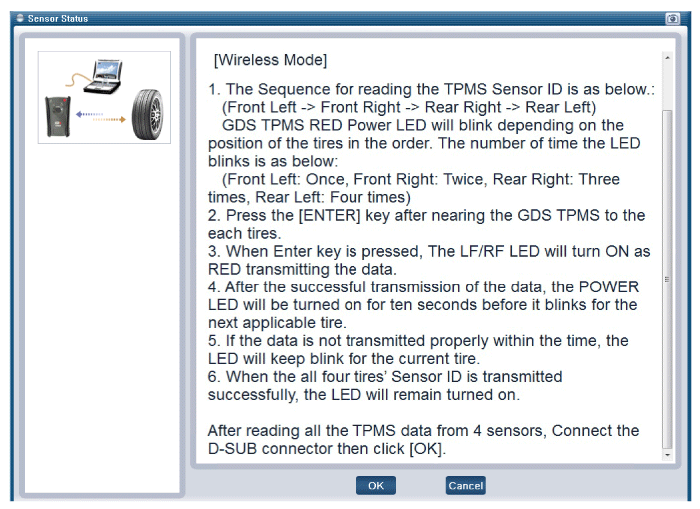

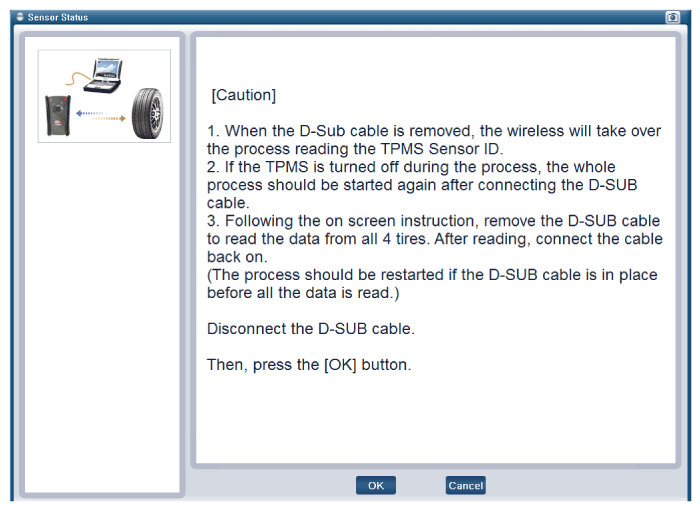

[Sensor Status initialization]

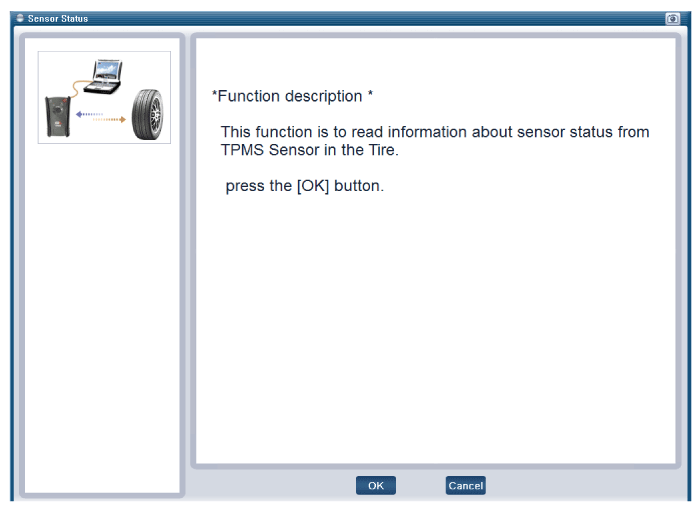

[Sensor function description]

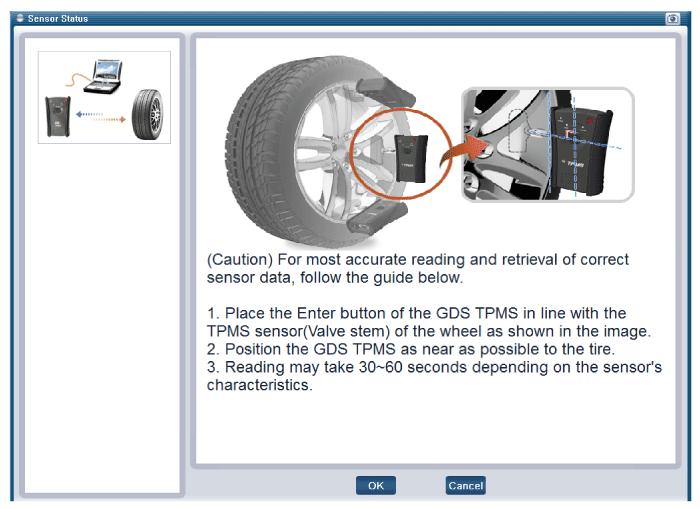

[Preparation phase sensor measurements]




•
In North America, the cable is measured separately.
•
In Domestic/General(European) area, the cable is measured without separation.
[Sensor measurements 1]


[Sensor measurements 2]

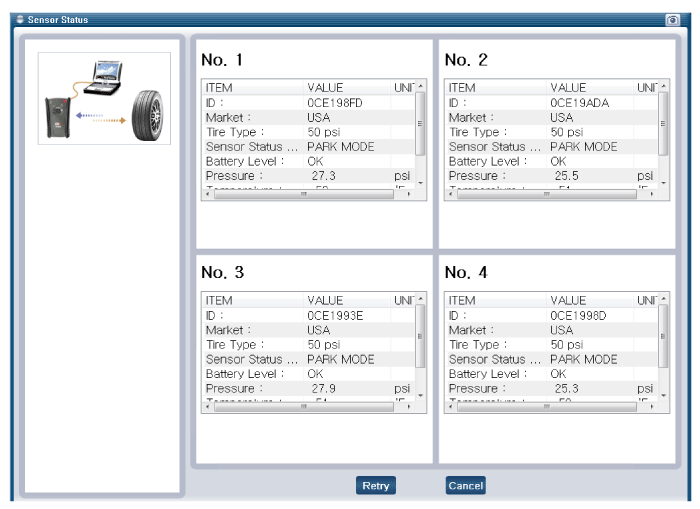

[Sensor Status]




•
Each entry must check whether each sensor normal.
•
After replacing the tires or sensors, check the status of sensor is working properly after sensor registration process.
TPMS Sensor Installation
Sensor Fit    • Handle the sensor with care. • ...

TPMS Receiver Description
1. Mode (1) Virgin State A. The receiver as a sole part is shipped in this state. ...
