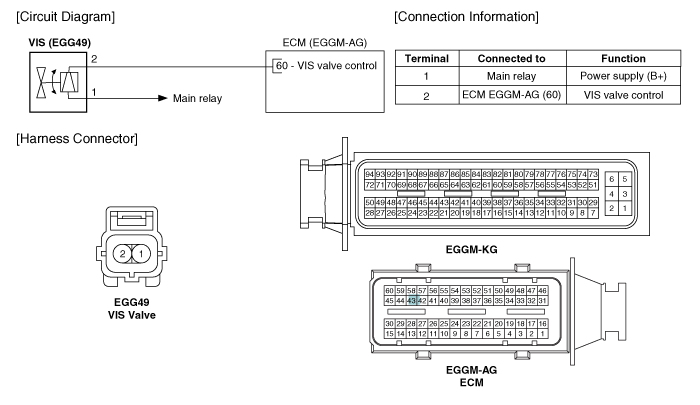

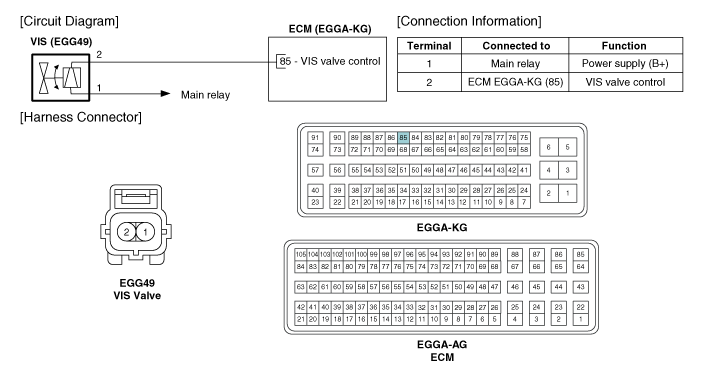

Kia Rio: Circuit Diagram

Specification

Item Specification Coil resistance (Ω) 30.0 ~ 35.0 [20°C(68°F)] ...

Inspection

1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance between VIS valve ...
