Kia Rio: Components - Hands Free System - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Components

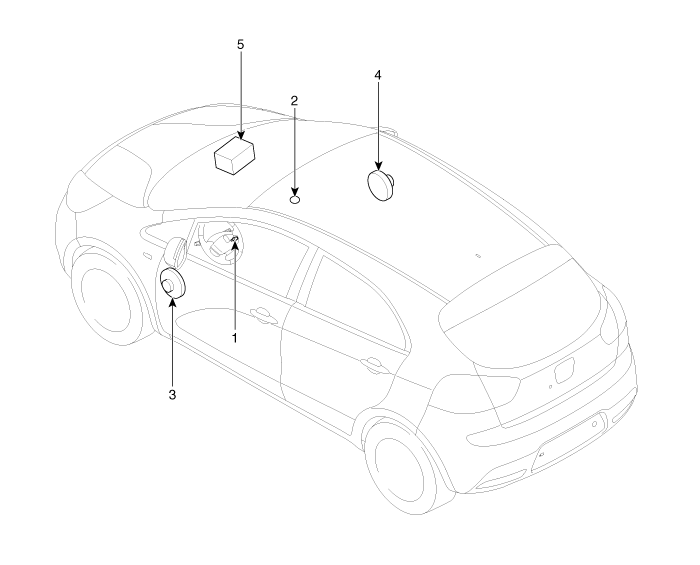

1. Hands free call switch
2. Mic
3. Front left speaker
4. Front right speaker
5. Audio head unit (hands free control)

※ There is no hands free jack. This system supports Bluetooth(wireless system).
Hands Free System
...

Hands free switch Schematic Diagrams
Circuit Diagram(1) Circuit Diagram(2) ...
