Kia Rio: Components

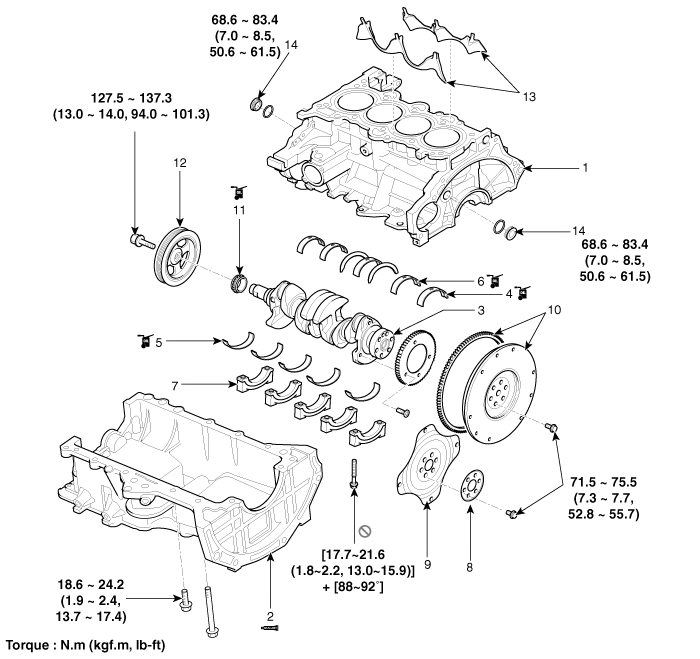

| 1. Cylinder block 2. Ladder frame 3. Crankshaft 4. Crankshaft upper bearing |
5. Crankshaft lower bearing 6. Thrust bearing 7. Main bearing cap 8. Adapter plate |
9. Drive plate 10. Fly wheel 11. Crankshaft sproket 12. Crankshaft pulley 13. Water jacket insert 14. Oil gallery plug or sealing cap |

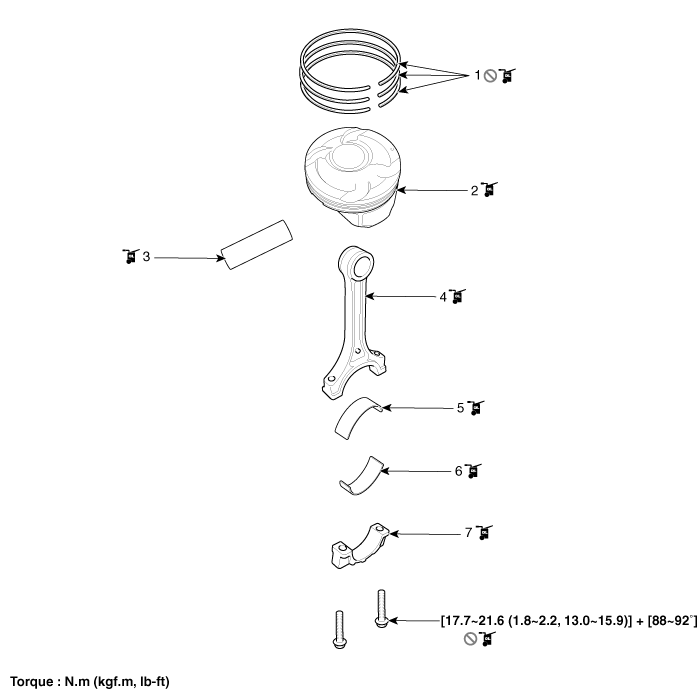

| 1. Piston ring 2. Piston 3. Piston pin 4. Connecting rod |
5. Connecting rod upper bearing 6. Connecting rod lower bearing 7. Connecting rod bearing cap |
Cylinder Block
...
Disassembly
Engine removal is required for this procedure. (Refer to Engine and transaxle
assembly removal in this group)
1.
M/T : Remove the fly wheel.
2.
...
